Agiltron Tuneable Optical Filters

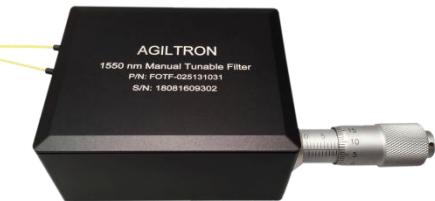

Agiltron 1060nm 1550nm 2000nm Manual Fibre Optic Tuneable Filter

Agiltron’s Manual Grating-Based Fibre Optic Tuneable Filter provides a simple way to adjust the centre wavelength of narrow band over wide band. Wavelength tuning is achieved by rotating a grating using a micrometer.
Based on a proprietary optics, Agiltron offers extremely low insertion loss, high stability, polarisation independent operation, and high off-band suppression. It is tuneable continuously over a wide
spectral range. The device presents a most cost-effective solution for OEM applications from fibre optic networks to fibre sensing interrogation.

BBN International supplies Agiltron 1060nm 1550nm 2000nm Manual Fibre Optic Tuneable Filter

Manual Etalon Based Tuneable Optical Filter

Based on a proprietary thin film cavity filter technology, Agiltron offers Tuneable Optical Filter with central wavelengths ranging from 450 nm to 2000 nm. It is tuneable continuously over a wide spectral range up to 80nm. Agiltron further offers high optical power handling up to 10 W(CW) while maintaining the transmission spectral shape polarisation-insensitive over the whole tuning range. Agiltron’s unique high reliability and low insertion loss design presents a most cost-effective solution for OEM applications from fibre optic networks to fibre sensing interrogation.

BBN International supplies Agiltron etalon based manual tuneable optical filter, Agiltron etalon based manual fibre optic tuneable filter

MEMS Grating Tuneable Filter - 0.4nm Bandwidth

Agiltron offers Fibre Optic MEMS Tuneable Filters with central wavelengths of
1060nm, 1310nm, 1550nm, and 2000nm. It is tuneable continuously over a spectral
range of up to 80nm at a speed of about 80ms. The wavelength tuning is actuated
by driving a rotating MEMS mirror that is optically coupled with a grating and a dual
fibre collimator. It is conveniently controlled with user-friendly GUI and control
interfaces of USB or RS232 and I²C.

BBN International supplies MEMS Grating Tuneable Filter - 0.4nm Bandwidth

Motor Driven Grating Based Fibre Optic Tuneable Filter

Agiltron’s Motor Driven Grating-Based Fibre Optic Tuneable Filter provides a simple way to adjust the centre wavelength of narrow band over wide band. Wavelength tuning is actuated by driving a built-in precise stepper motor through interface of USB or RS232.
Based on a proprietary optics, Agiltron offers extremely low insertion loss, high stability, polarisation independent operation, and high offband suppression. It is tuneable continuously over a wide spectral range. The device presents a most cost-effective solution for OEM applications from fibre optic networks to fibre sensing interrogation.

BBN International supplies Motor Driven Grating Based Fibre Optic Tuneable Filter

Motorised Fibre Optic Tuneable Filter

Based on a proprietary thin film cavity filter technology, Agiltron offers Optical Tuneable Filter with central wavelengths ranging from 450nm to 2000nm. It is tuneable continuously over a wide spectral range up to 80nm. Agiltron further offers high optical power handling up to 10 W(CW) while maintaining the transmission spectral shape polarisation-insensitive over the whole tuning range. Agiltron’s unique high reliability and low insertion loss design presents a most cost-effective solution for OEM applications from fibre optic networks to fibre sensing interrogation. The FOTF has a build-in RS 232 computer control interface.

BBN International supplies Agiltron motorised fibre optic tuneable filter, Agiltron motorised tuneable optical filter

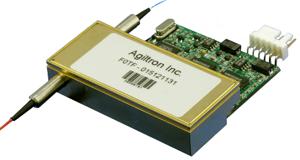

Motorised PM Fibre Optic Tuneable Filter

Based on a proprietary thin film cavity filter technology, Agiltron offers PM Optical Tuneable Filter with central wavelengths ranging from 450nm to 2000nm. It is tuneable continuously over a wide spectral range up to 80nm. Agiltron further offers high optical power handling up to 10 W(CW) while maintaining the transmission spectral shape polarisation-insensitive over the whole tuning range. Agiltron’s unique high reliability and low insertion loss design presents a most cost-effective solution for OEM applications from fibre optic networks to fibre sensing interrogation. The FOTF has a build-in RS 232 computer control interface

BBN International supplies Agiltron motorised PM fibre optic tuneable filter, Agiltron motorised PM tuneable optical filter, Agiltron motorised polarisation maintaining fibre optic tuneable filter, Agiltron motorised polarisation maintaining tuneable optical filter
