Genki Picosecond Laser Modules

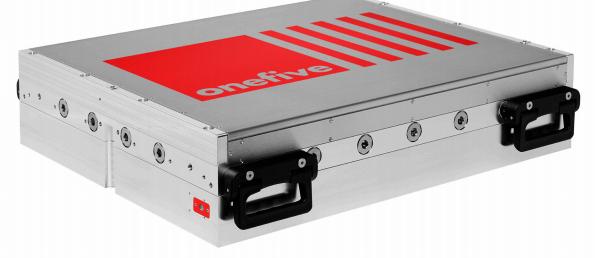

The Genki XP platform pushes industrialisation of high energy and high power picosecond lasers further. The system is based on the ultra stable Genki seed laser and provides clean pulses shorter than 10 ps, which is an optimal pulse duration window for many micro-machining applications. To satisfy the increasing demand of picosecond laser workstations, the Genki XP has been optimized to provide up to 100 W of average power and 300 μJ pulse energy at the industry-standard wavelengths of 1030 and 1064 nm. The laser can be tailored to work at lower repetition rates with even higher energies or at several MHz to follow high-speed automated processes. The Genki XP has been designed for the easiest and most cost-effective possible system integration can be mounted in any direction and offers full remote control capability.

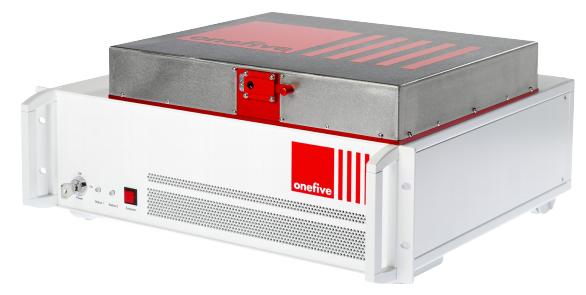

Genki HP is an industrial-grade, cost-effective, high power, picosecond laser that emits close to transform-limited pulses, providing diffraction limited beam quality and narrow spectral width. Genki HP comes with an integrated pulse picker and can be operated in burst-mode. Excellent pointing stability in free-space output as well as fibre output is available. Genki HP is a compact, maintenance-free laser module which is packaged in a sealed, robust enclosure. It guarantees high stability and 24/7 operation.

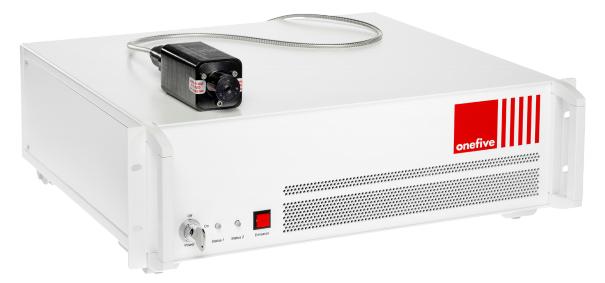

Genki is an industrial-grade, low noise and cost-effective, mode locked picosecond laser that emits close to transform-limited pulses from 4 to 45 ps with a narrow spectral width. It provides diffraction-limited beam quality and excellent pointing stability. Both free-space as well as simple fiber output are available at various wavelengths. Genki is an air-cooled laser module which is also available in a compact and robust enclosure allowing for operation in the harshest environments. Genki laser platform is maintenance-free and guaranties 24/7 operation.
