Optoplex Tuneable Filters
2-Port Optical Tuneable Filter
Optoplex's Tuneable Optical Filter, also known as Optical Tuneable Filter or Tuneable Bandpass Filter, is an integrated module, consisting of micro optics and electronics. When receiving a stream of optical signals of a plurality of wavelengths from the Input-Port (IN), the 2-port tuneable optical filter directs a selected channel to the Output-Port (OUT). The selected channel can be varied (tuned) within the operating wavelength (frequency) range by a remote command sent through the built-in control PCB and firmware.BBN International supplies Optoplex 2-port tuneable optical filter

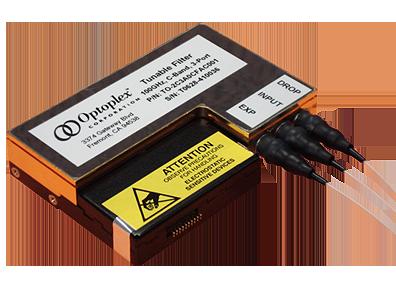

3-Port ROADM and TOADM
Optoplex's Reconfigurable Optical Add/Drop Multiplexer (ROADM) module, also known as Tuneable Optical Add/Drop Multiplexer (TOADM), is based on a proprietary micro-optics and micro-actuator design, athermal packaging technology, and state-of-the-art thin-film coating. When receiving a stream of optical signals of a plurality of wavelengths from the Input-Port (IN), this 3-port ROADM device directs a selected channel to the Drop-Port (ADD/DROP) and the remaining channels to the Express-Port (EXP), as depicted in the figure below. This tuneable feature can also be used for adding a channel, when the device is used in reverse. Cascading two ROADM modules, simultaneous add and drop functions can be achieved. Each single ROADM device is optimised to cover either C- or L-band wavelengths. The standard 100- or 200-GHz channel spacing ROADM products allow for single-channel drop. Customised banded-channel drop ROADMs are available upon request. BBN International supplies Optoplex 3-port reconfigurable optical add/drop module (ROADM), Optoplex 3-port tuneable optical add/drop multiplexer (TOADM)
Bandwidth Tuneable Filters
Through cascading a low-pass tuneable edge filter with a long-pass tuneable edge filter, one can achieve a new type of bandwidth-tuneable filter whose pass band width is variable while its centre wavelength is still tuneable. With such a device, you can- Change passband width
- Tune centre wavelength

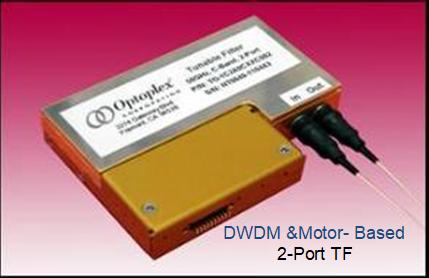

Dual Collimator Tuneable Filter
Optoplex’s Tuneable Optical Filter is based on a patented micro-optic design and thin-film coating technology. The wavelength tuning is achieved by varying the incident angle of the incoming light beam on the thin-film filter. Each device can be used to select (drop) one particular ITU channel at a given configuration. The device can be also continuously tuned over the wavelength tuning range.BBN International supplies Optoplex dual collimator tuneable optical filter
Fabry-Perot Based Scanning Filter
This new type Fabry-Perot Based Scanning Filter (FPSF) is based on Optoplex proprietary fibre optical Fabry-Perot Etalon technology. It offers F-P based scanning filter with central wavelength at 1060nm, 1310nm, 1550nm or other customised wavelength. It can be tuned manually or automatically by scanning over a wide spectral range from 10nm to 100nm with bandwidth from 0.05nm to 1.0nm. FPSF features less than 3dB insertion loss and as high as 1kHz scanning frequency. Its unique high reliability and low insertion loss design presents the most cost-effective solution for OEM application from telecommunication to fibre sensing interrogation.BBN International supplies Optoplex Fabry-Perot scanning filter
MEMS Tuneable Filter
Optoplex’s MEMS Tuneable Optical Filter is based on a patented micro-optic design with MEMS tuning technology. It is an integrated module consisting of a MEMS chip, micro-optics and control electronics and interface. When receiving a stream of optical signals of a plurality of wavelengths from the Input-Port (IN), the 2-port tuneable optical filter directs a selected channel to the Output-Port (OUT). Wavelength (frequency) tuning is achieved by changing driving voltage applied to the MEMS chip, via the control electronics and the built-in firmware.BBN International supplies Optoplex MEMS tuneable optical filter, Optoplex MEMS tunable filter
Tuneable Edge Filters
Tuneable edge filter is a customised product. It usually belongs to 2-port optical tuneable filter product platform. Instead of using narrow bandpass filter in the 2-port tuneable optical filter, the tuneable edge filter utilises a low-pass or long-pass interference filter. By changing the incident angle of the light beam, the cut-off wavelength will be tuned. Standard Tuneable edge filters support C-band or L-band wavelength range.In other applications, Tuneable edge filter can be in 3-port configuration, in which one output is long pass and the other one is low pass.BBN International supplies Optoplex tuneable edge optical filter
