Connectors
FC Connectors
- Equivalent to NTT specification (FC)
- Complies with IEC 61754-13 and JIS C 5970
- Models achieve Telcordia optic connector test specification GR-326-CORE are available
- Models satisfy Vertical Burning Test for Classifying Materials UL94V-0 are available
Field Installable Pre-Polished Connectors
🗗 FAST Series SC/PC 0.9mm Instructions
The FAST Series connectors have a potential fibre connectorisation time of less than 30 seconds, including preparation. Apart from the standard fibre preparation tools, no other specialised tools are required in conjunction with the PC range of connectors, however APC variants require some additional tooling.The FAST series connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector.
Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fibre termination. The FAST series connectors are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers
BBN International supplies Fujikura Field Assembly Pre-Polished Splice-Free Fibre Optic Connector

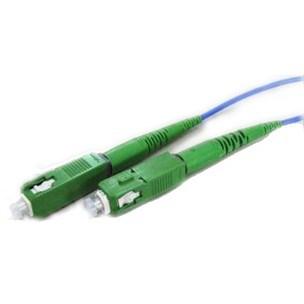

FUSEConnect Fusion Spliced Field Installable Connectors
FuseConnect™ is a series of field installable connectors that employ a fusion splicer to terminate the connector in the field. The FuseConnect range demonstrate performances which are very much comparable to factory built fibre patch cords.BBN International supplies AFL Fujikura FUSEConnect Fusion Spliced Field Installable Connectors

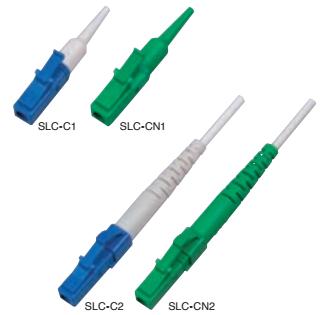

LC Connectors
- Complies with IEC61754-20 and JIS C 5964-20
- Models meet Telcordia test specification GR-326-CORE are available
- Connector series satisfies Vertical Burn Test. Materials comply to UL94V-0
- Unique design achieved quick assembly while maintaining high performance
- Duplex Clip can combine two simplex φ2.0mm connectors as duplex connector (6.25mm pitch)
- Applicable precision crimping tool Part Number: MDTK-02-142G

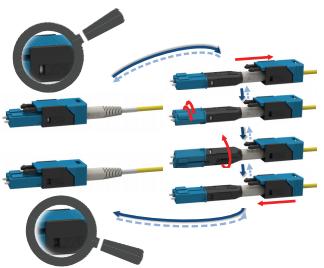

LC Uniboot Connector Intelli-Cross Series
Seikoh Giken Intelli-Cross Series LC Uniboot Connector with “Intelligent” Keying For Hyper Density Panel Management
- Fast and Easy polarity change with no tools required
- Fast and Easy polishing, both PC and APC Duplex
- Applicable for φ2mm & φ3mm jacketed cable
- High density installation with low profile & Optional Push-pull tool
MU Connectors
- Complies with IEC 61754-6 and JIS C 5983
- Models meet Telcordia test specification GR-326-CORE are also available
- Satisfies Vertical Burning Test for Classifying Materials UL94V-0(excluding cap)
- Unique design for quick assembly while maintaining high performance
- Satisfies MU connector intermateability test by NTT-AT
- Available precision crimping tool (Part Number: MDTK-02-130G)
SC Connectors
- Equivalent to NTT specifications (SC)
- Complies with IEC 61754-4 and JIS C 5973
- Models meet Telcordia test specification GR-326-CORE are available
- Models satisfy Vertical Burning Test for Classifying Materials UL94V-0 are available
- Available precision crimping tool (Part Number: MDTK-02-120G)
ST Connectors
- Easy connection with bayonet housing
- Applicable to LAN systems and equipment
- Applicable precision crimping tool (Part Number: MDTK-02-110G)
