Fibre Termination Components
Connectors
🗗 Seikoh Giken Connector Buyers Guide
- SC, ST, MU, LC and FC
- PC and APC
- With (plug) and without (housing) ferrules
- Normal (N-type wide) and reduced (R-type narrow) FC key widths
- Long and short boots
- 0.9, 2, 2.4 & 3mm cables
- Normal and 360° tuning FC connectors
Ferrules
- 2.5 & 1.25mm and custom ferrules
- Zirconia, glass, metal, Invar and custom ferrules
- Flat, pre-domed and funnelled PC ferrules
- Flat and pre-angled conical APC ferrules
- Flat and pre-angled stepped APC ferrules
- Single and multi-mode fibre
Adaptors
- SC, FC, LC & MPO
- PC & APC
- bare fibre & hybrid
- bulkhead round, rectangular, oval
- with & without flange

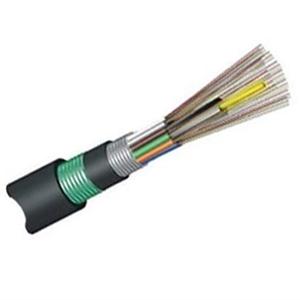

Fibre Optic Cables
- Outdoor, indoor
- Metal and non-metallic strength members
- Single and multi-fibre
- Armoured and non-armoured
- Multi-fibre cables
Fixed Attenuators
- Fixed plug-type & in-line attenuators
Gold Standard Series Connectors
The GS Series fibre optic connectors are designed to exceed industry standards while maximising end-user value. Integrating Seikoh Giken’s precision moulding/manufacturing processes guarantee low loss optical performance and consistently high yields. The connectors utilise Seikoh Giken’s globally recognised, injection moulded precision ferrules and feature a pre-assembled, one-piece construction with push-pull coupling. The GS Series optical connectors are available in both single mode and multi-mode ferrule formats and can be ordered with a wide range of strain relief boots for multiple cable formats. Duplex configurations are achieved with a simple, low-cost clip.BBN International supplies Seikoh Giken Gold Standard Series Fibre Optic Connectors

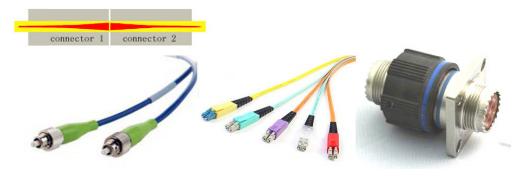

High Power Connectors
- Beam expanded connectors
- Safety connectors with shutters and interlocks
Intelli-Cross Pro LC Uniboot Connector
🗗 Intelli-Cross Pro – “All-in One” LC Uniboot Connector
Seikoh Giken Intelli-Cross Pro LC Uniboot Connector with "Intelligent" Keying for Hyper Density Panel Management
With an ultra compact, low-profile form factor, the Intelli-Cross Pro LC Uniboot Connector incorporates a proprietary, patented micro-gear mechanism that "intelligently" syncs the A-B housing keys during polarity reconfigurations.
The Intelli-Cross Pro LC Uniboot Connector requires further less space to be installed with pushpull mechanism
BBN International supplies Intelli-Cross Pro LC Uniboot ConnectorWith an ultra compact, low-profile form factor, the Intelli-Cross Pro LC Uniboot Connector incorporates a proprietary, patented micro-gear mechanism that "intelligently" syncs the A-B housing keys during polarity reconfigurations.
The Intelli-Cross Pro LC Uniboot Connector requires further less space to be installed with pushpull mechanism
Optical Patch Cords
- Single mode
- Multi-mode
- V-groove array
- Polarisation maintaining
- Hybrid
- Pigtails
- Ribbon
- Mode conditioning
- Armoured cables
- Launch leads
- Master jumpers
- Short wavelength
- RGB
UltraL Ultra Low Loss Connectors
The UltraLTM Ultra Low Loss fibre optical connectors/patch cables achieve exceptionally low coupling loss, enabling customers to design new quantum systems or lowest loss network with higher bandwidth and longer spans. The low loss is achieved by a patent pending automatic core alignment technology that ensures each connector having below 0.07dB loss, while an ordinary connectors often has loss about 0.30dB.
The connector uses high quality ceramic ferrules with formats that are compatible with standard connectors and can be repolished to remove surface scratches. The ultra low loss performance requires mating between UltraLTM connectors. Due to the near-perfect butt-mating between the two fibres, the return loss is also high >55dB. FC/PC is the standard connector type, while other connector types can be specially made. The UltraLTM can be cost effectively produced in volume.
BBN International supplies UltraL Ultra Low Loss ConnectorsThe connector uses high quality ceramic ferrules with formats that are compatible with standard connectors and can be repolished to remove surface scratches. The ultra low loss performance requires mating between UltraLTM connectors. Due to the near-perfect butt-mating between the two fibres, the return loss is also high >55dB. FC/PC is the standard connector type, while other connector types can be specially made. The UltraLTM can be cost effectively produced in volume.
